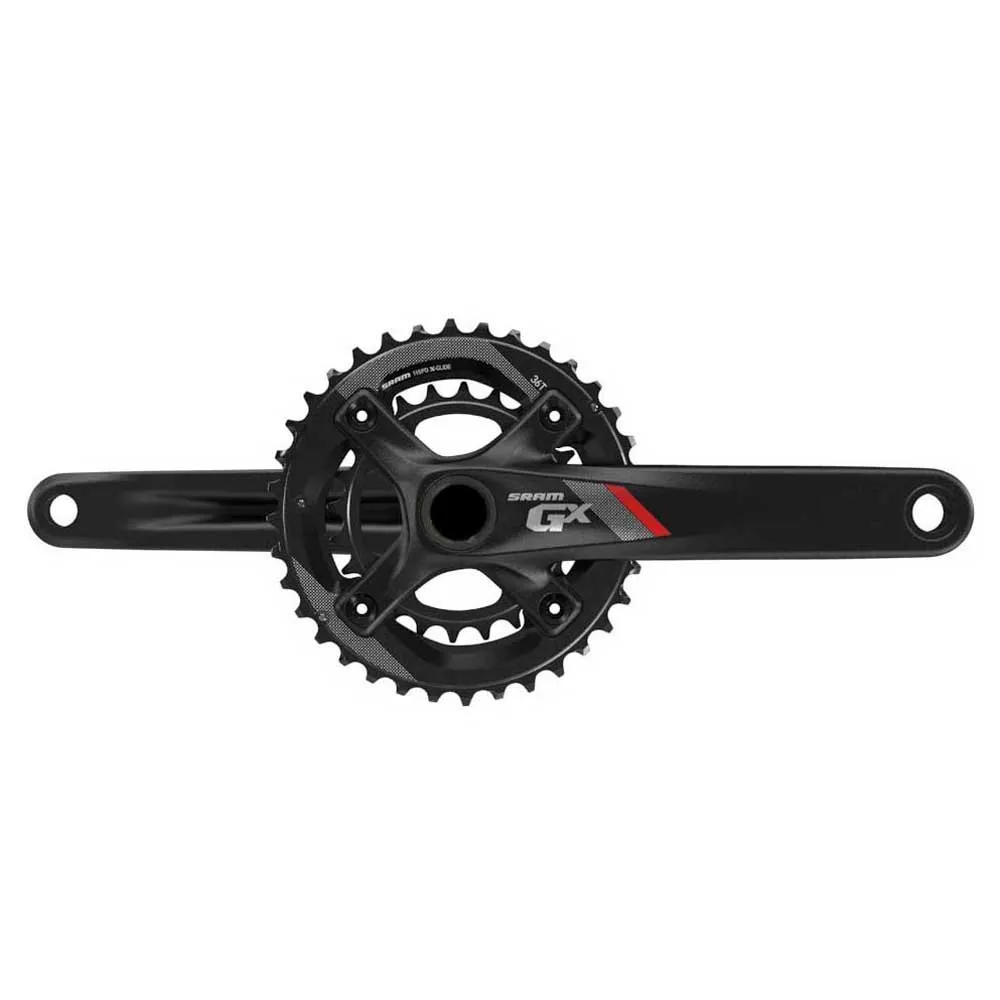

SRAM GX-1000 Crankset

The Sram Gx Crankset Delivers Consistent Performance Every Time Out. Featuring Sram´s |X-Sync™ Tooth Profile, The Gx Crankset Is Engineered For Complete Chain Control. Each |Tooth´s Thickness Is Cnc Machined To Work Seamlessly With The Chain´s Inner And Outer |Links. And With Five Available Chainrings, You Can Personalize Your Gear Range To Match The Way You Ride.

Features:

– This Gx Crank Is An Integral Part Of The Sram 1x™ Drivetrain System.
– The Sram Gx Crankset Delivers Consistent Performance Every Time Out
– Featuring Sram´s X-Sync™ Tooth Profile
– The Gx Crankset Is Engineered For Complete Chain Control.
– Personalize Your Gear Range With Five Available Chainrings

Specifications:

– Crank Arm Length: 165mm, 170mm, 175mm
– Bb Spindle Interface: 24mm, 30mm, Gxp
– Bb Compatibility: Bb30/Pf30-68/73mm, Gxp 100mm/Pf Gxp 121mm, Gxp/Pf Gxp 68/73mm
– Speeds: 10/11
– Chainring Material: Aluminum
– Bolt Circle Diameter (Bcd): 94 Bcd
– Chainline: 49.0mm, 52.0mm, 66.5mm
– Chainring Size: 30t, 32t, 36t, 38t
– Weight (G): 745
– Weight Based On: Gxp 175mm Boost 32t

Technology:

Bb30:
– Besides Serious Weight Savings, This Bottom Bracket Means Narrow Q-Factor, More Ankle Clearance, Greater Bearing Durability, And Stronger Crank Construction.

Boost:
– Boost Is The Standard Wheel And Drivetrain Specification That Opens The Opportunity For Improved Frame Geometry With Shorter
Chain Stays, Wider And Stiffer Suspension Pivots, Wider Range Of Chainring Options, As Well As More Clearance For Bigger Tires And Wider, Stiffer Wheels.

Gxp:
– Gxp´s Gutter Seal Design Cuts Friction, Durability And Weight-Improving Both Feel And Performance.

Pressfit 30:
– It´s All The Best From Bb30 And Press-Fit Bottom Brackets In One Captivating9 Package. This Bottom Bracket Is Designed
For 30mm Spindle Cranksets. The Key Difference With Pressfit 30 Is How The Bearings Are Fitted Into The Frame. Bearings
Are Housed In Nylon Cups Which Will Be Pressed Into The Frames Bottom Bracket Shell. Pressfit 30 Will Feature An Integrated
Seal, Pre-Assembled Into The Cups, To Further Prolong Bearing Life.

X-Sync:
– Sram X-Sync 1x Chainrings Provide The Highest Level Of Performance And Durability. The Sram Xsync Tall Square Teeth Edges
Engage The Chain Earlier Than Traditional Triangle Shaped Teeth. The Sharp And Narrow Tooth Profile, As Well As Rounded
Chamfer Edges, Help Manage A Deflected Chain. To Provide The Best Possible Performance In Muddy Conditions, The X- Sync Chainrings Have Been Designed With Mud-Clearing Recesses For The Inner Chain Links And Rollers. Engineered In Germany, X-
Sync Rings Are An Integral Part Of The Sram 1x Drivetrain. Accept No Imitation.

Pressfit Gxp:
– A Variant Of The External Gxp Bottom Bracket, Press Fit Cuts Weight By Up To 40 Grams And Eases Installation By Allowing You To Press The Bearing Cups Into The Frame Instead Of Threading Them. It Requires No Change To The Crank Spindle Length And Diameter.
